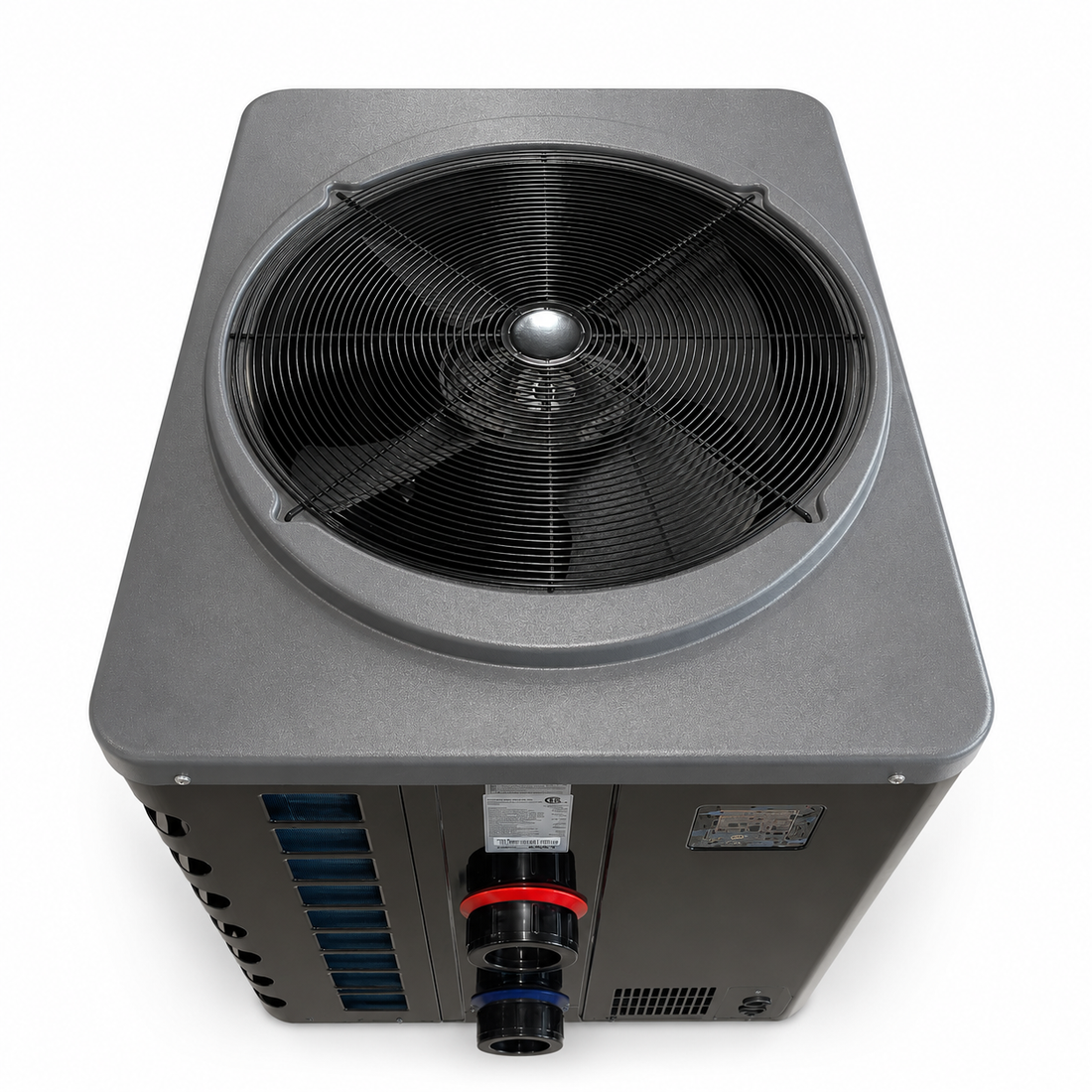

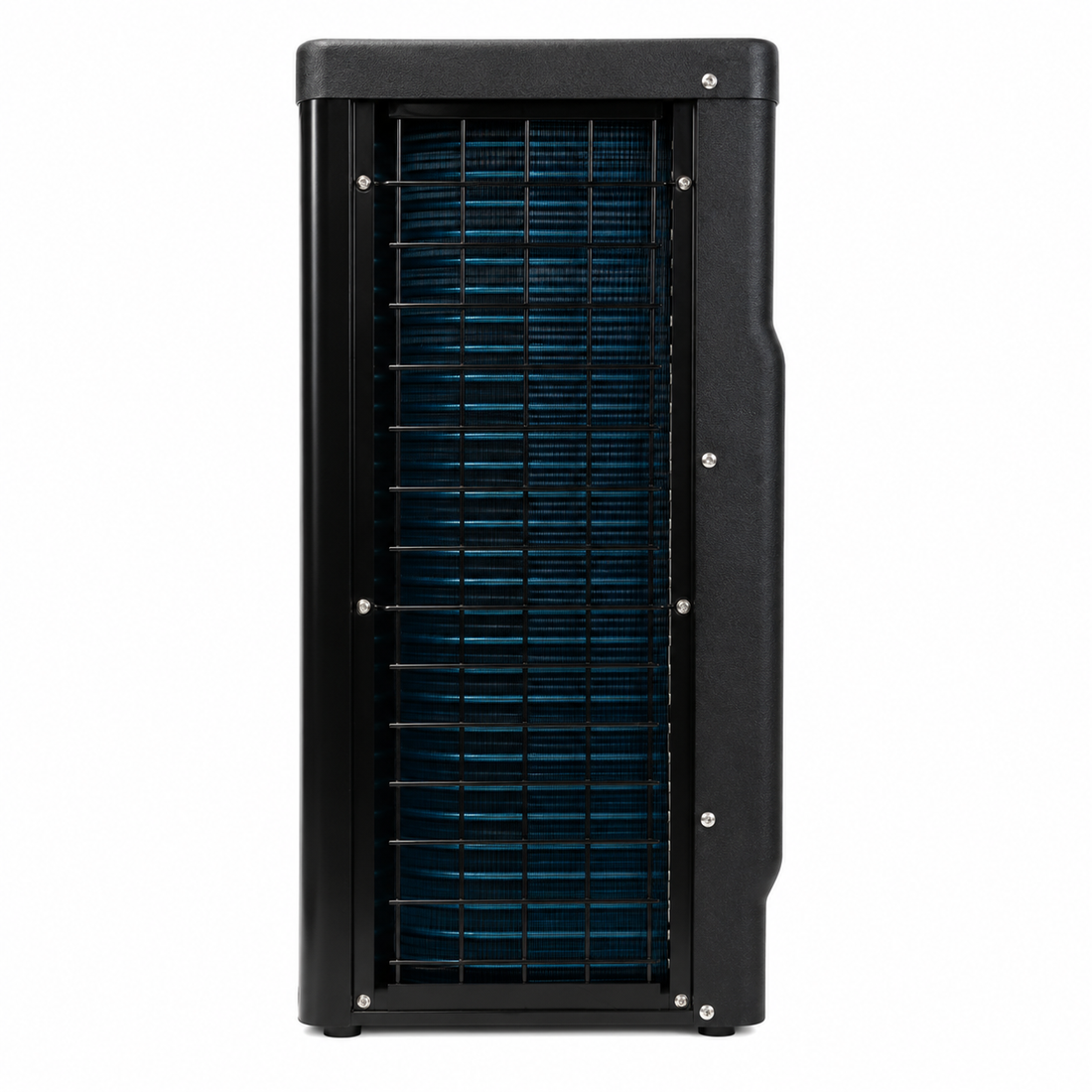

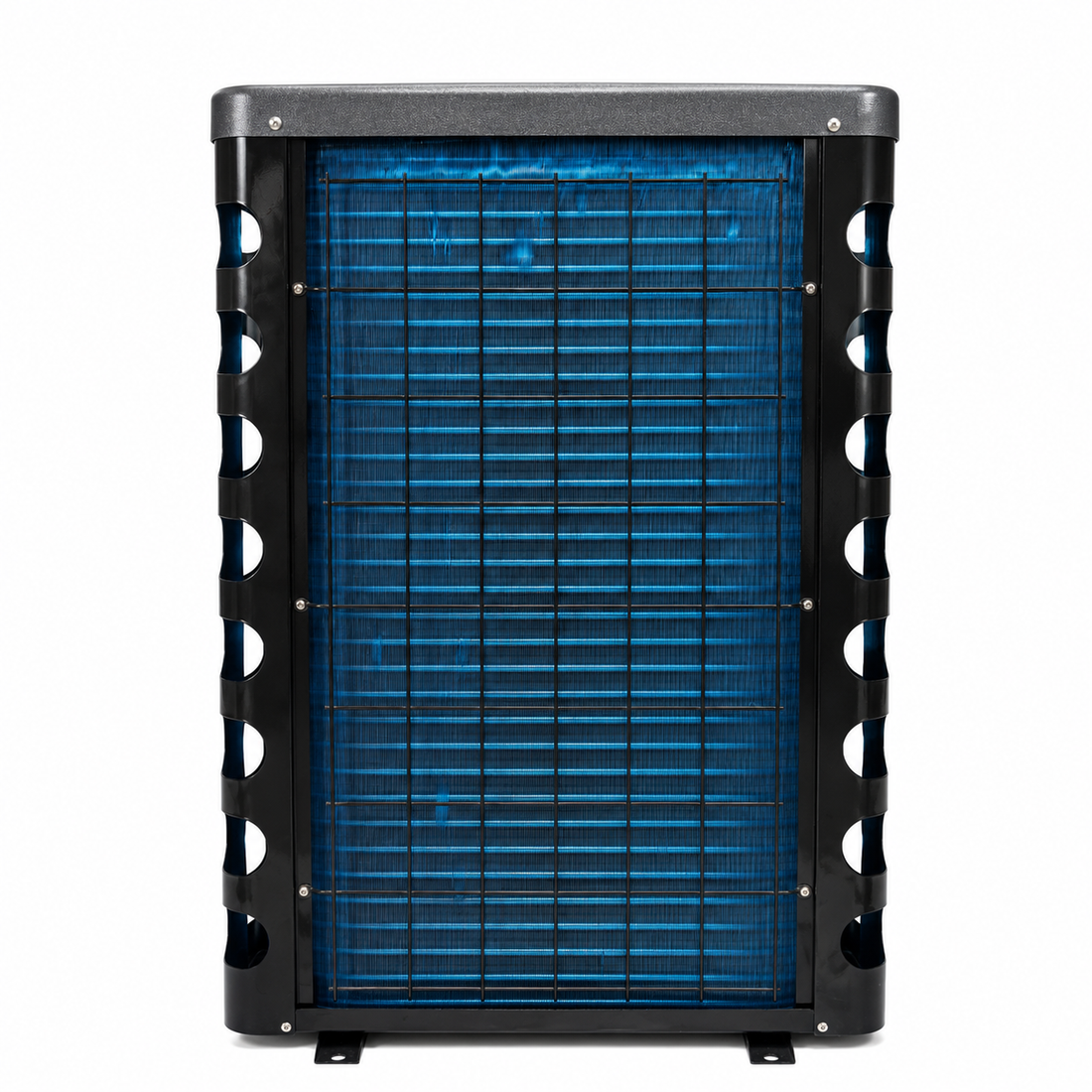

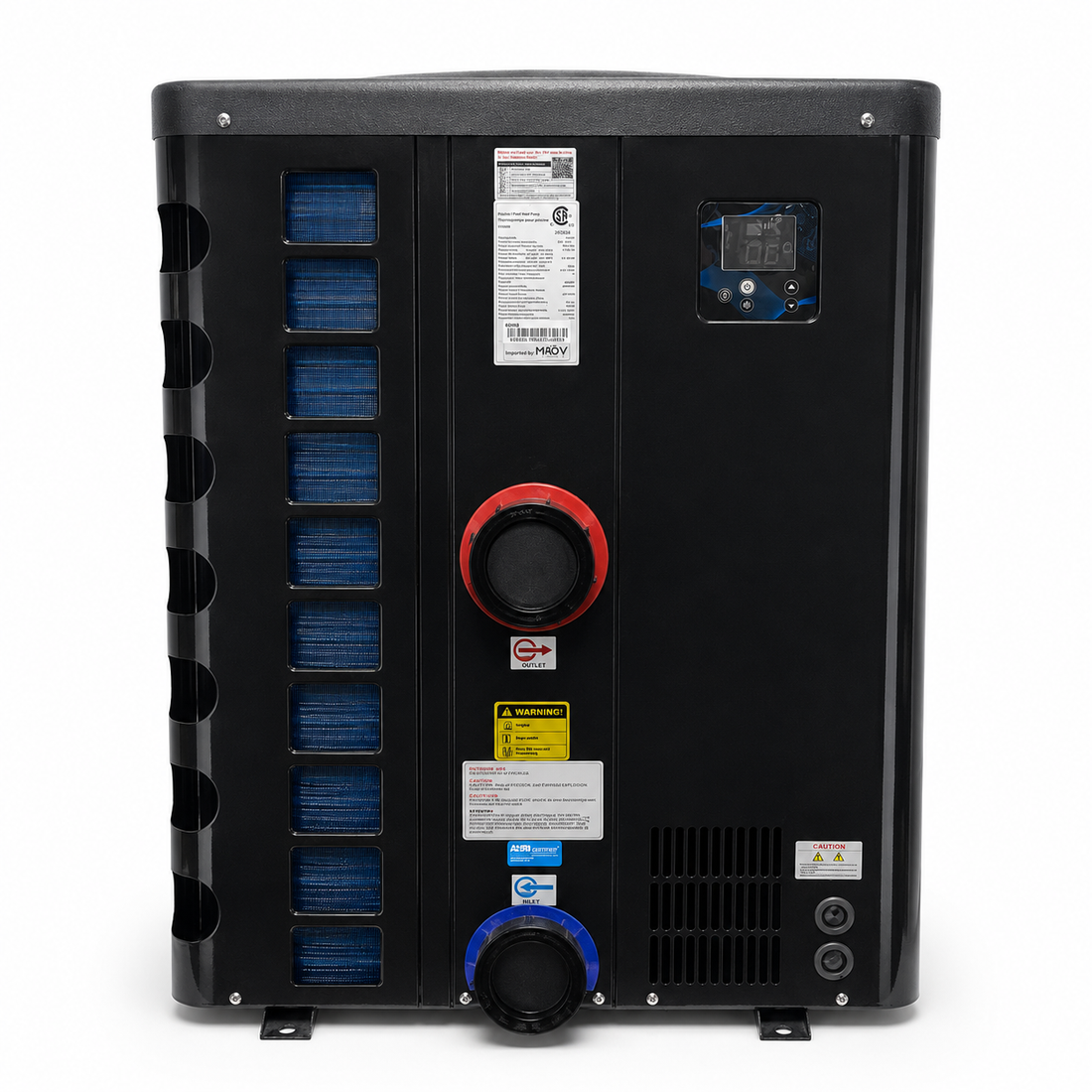

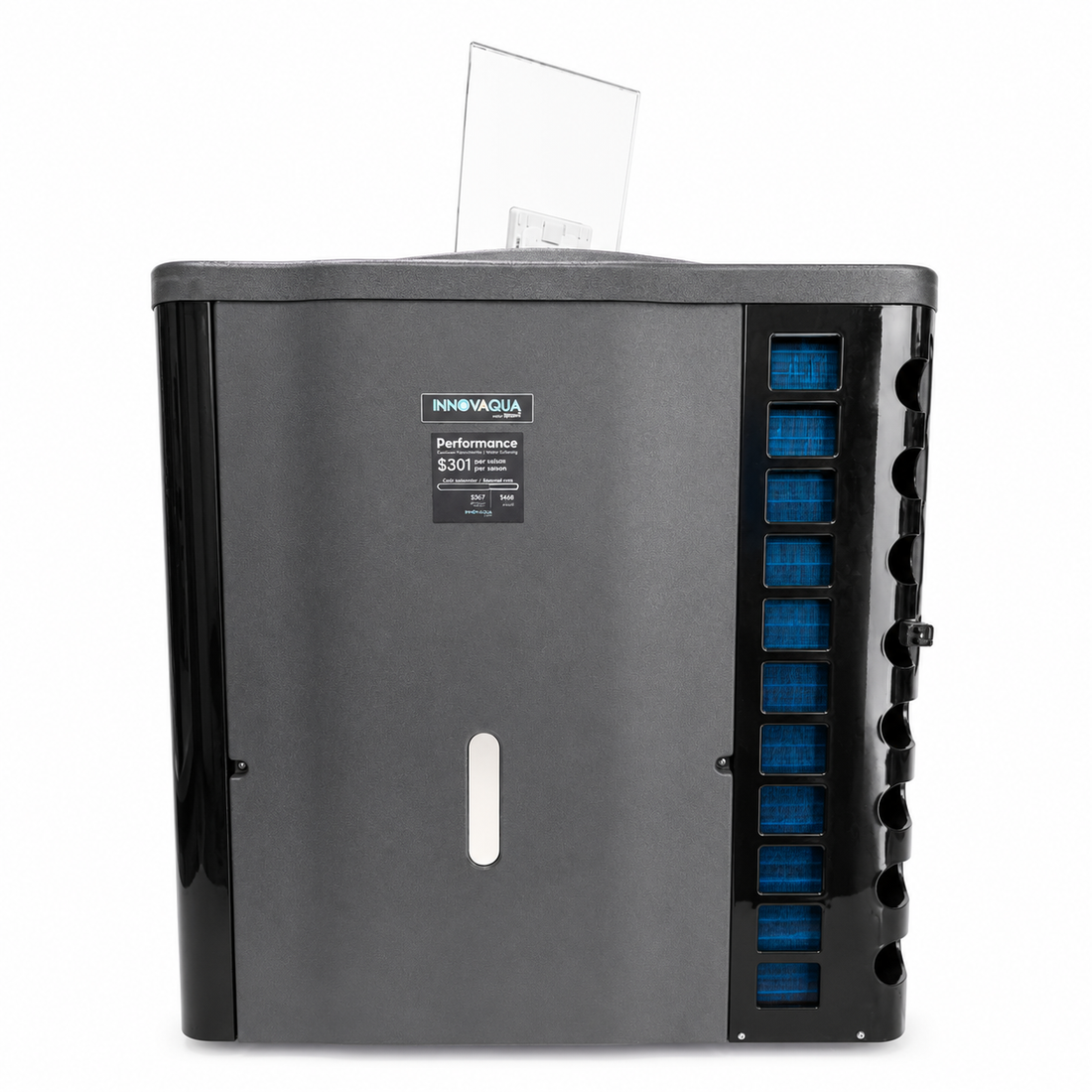

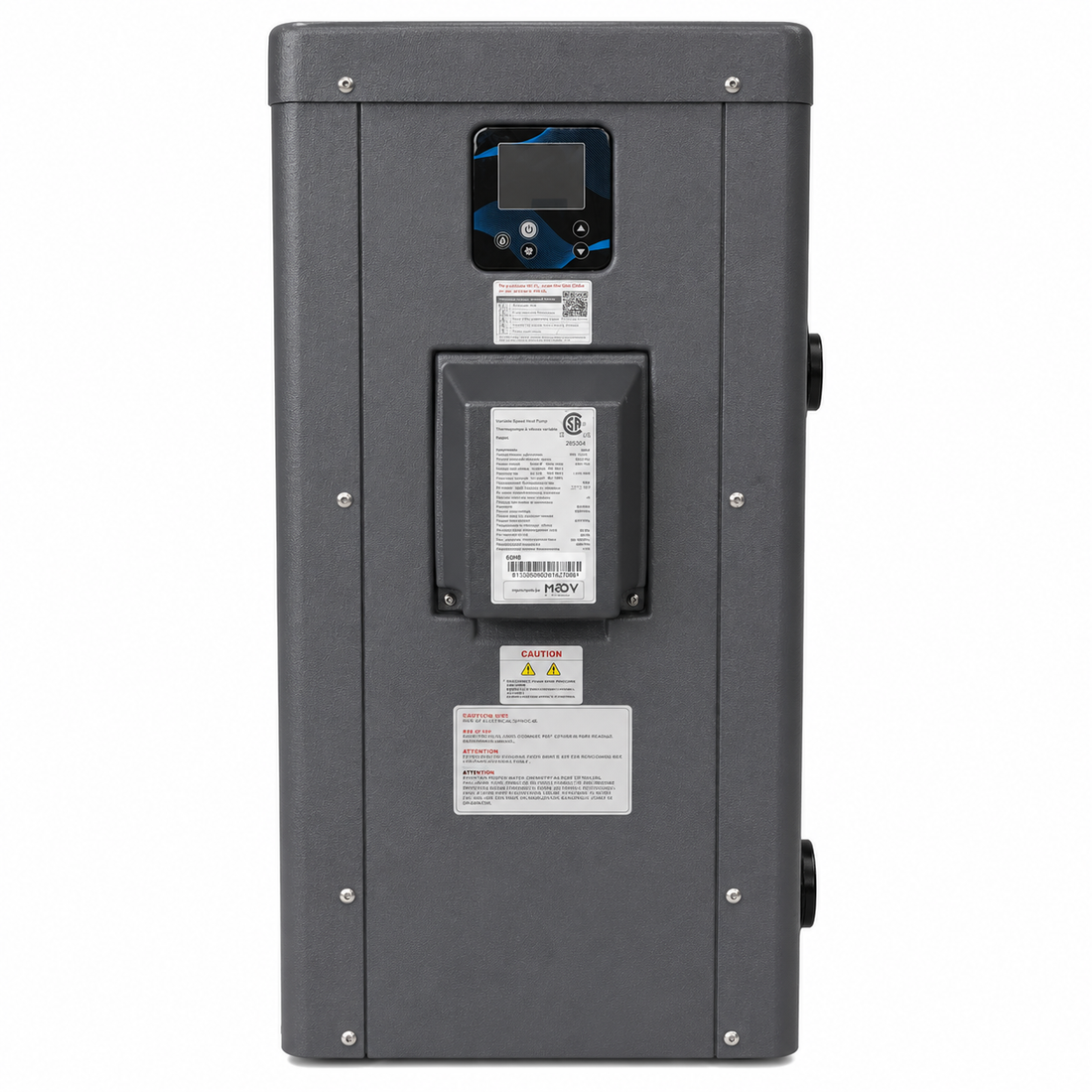

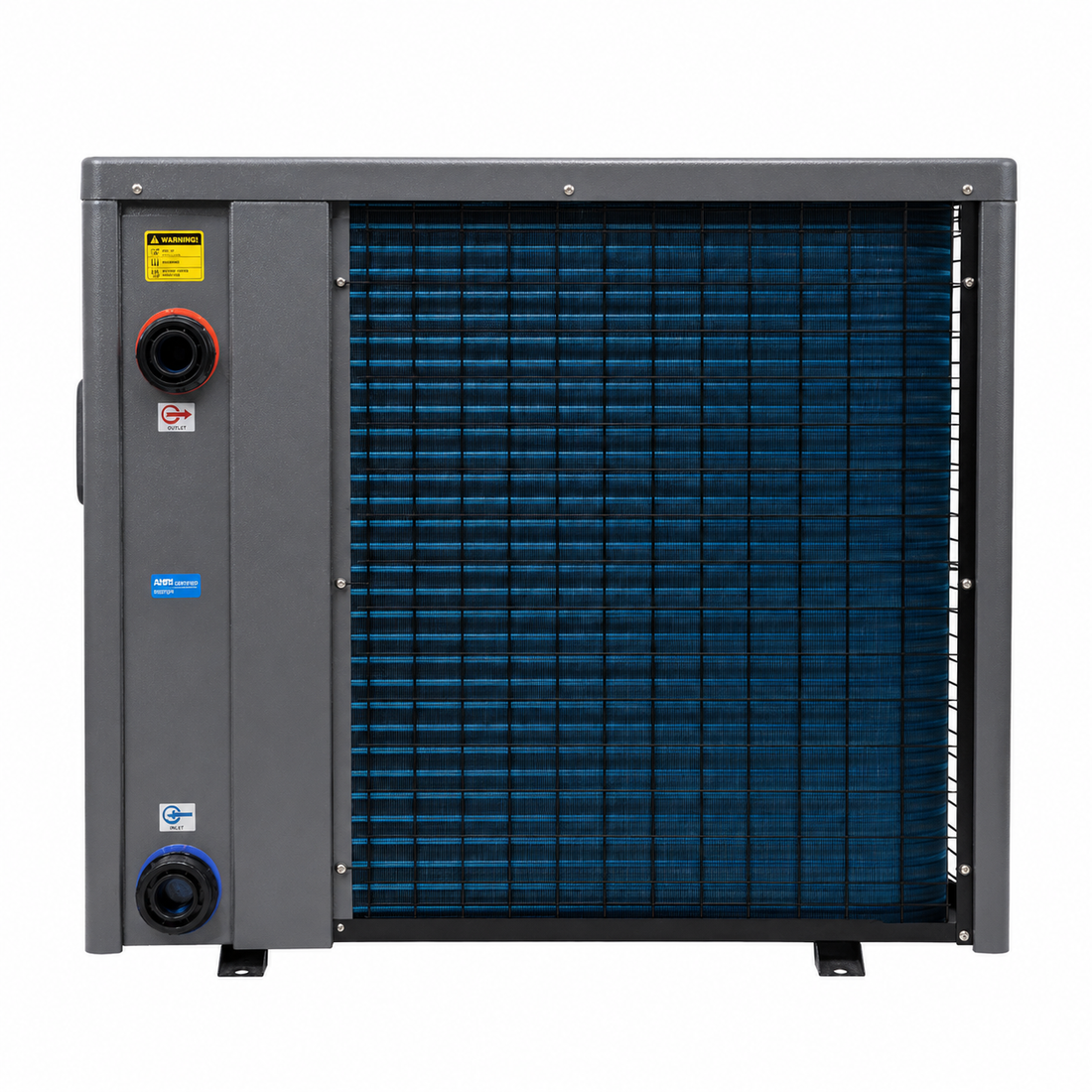

Moov Innovaqua Variable-Speed Heat Pump
- Regular price
- $3,999
- Sale price
- $3,999
- Sale
-
11% off
- Regular price
-
$4,499
Which heat pump do I need for my pool?
Heat pumps for above-ground pools
| Pool Type | Pool Size (Liters) | Heat pump size | Models |
| Above-ground | 15' Round (21 600 Liters) | 50 000 BTU | Shop 50 000 BTU heat pumps |
| Above-ground | 18' Round (31 200 Liters) | 50 000 BTU | Shop 50 000 BTU heat pumps |
| Above-ground | 21' Round (42 400 Liters) | Between 55 000 BTU and 65 000 BTU | Shop 55 000 BTU to 65 000 BTU heat pumps |
| Above-ground | 24' Round (55 200 Liters) | Between 70 000 BTU and 85 000 BTU | Shop 70 000 BTU to 85 000 BTU heat pumps |
| Above-ground | 27' Round (70 000 Liters) | Between 90 000 BTU and 105 000 BTU | Shop 90 000 BTU to 105 000 BTU heat pumps |
| Above-ground | 30' Round (86 400 Liters) | Between 110 000 BTU and 130 000 BTU | Shop 110 000 BTU to 130 000 BTU heat pumps |
Heat pumps for in-ground pools
| Pool Type | Pool Size (Liters) | Heat Pump Size | Models |
| In-ground | 12' x 24' (32 628 Liters) | 50 000 BTU | Shop 50 000 BTU heat pumps |
| In-ground | 14' x 28' (44 391 Liters) | Between 55 000 BTU and 65 000 BTU | Shop 55 000 BTU to 65 000 BTU heat pumps |
| In-ground | 16' x 32' (58 003 Liters) | Between 75 000 BTU and 85 000 BTU | Shop 75 000 BTU to 85 000 BTU heat pumps |
| In-ground | 18' x 36' (73 487 Liters) | Between 95 000 BTU and 110 000 BTU | Shop 95 000 BTU to 110 000 BTU heat pumps |
| In-ground | 20' x 40' (90 847 Liters) | Between 120 000 BTU and 140 000 BTU | Shop 120 000 BTU to 140 000 BTU heat pumps |
* The above-ground pool figures are estimates for a depth of 52 inches.
* The in-ground pool figures are estimates for a depth of 48 inches.
* The numbers in this graph are provided for informational purposes only.
Availability
Powered by variable-speed technology, the Trévi lnnovaqua heat pump can intelligently adjust its heating capacity from 20% to 100% according to your needs. When the desired temperature is reached, it operates at low speed to save energy while offering unrivalled performance and low noise levels.
FEATURES
- Energy savings without power loss.
- Soft starter.
- Dual rotary DC variable speed compressor.
- Titanium spiral heat exchanger.
- HP-Booster technology.
SPECIFICATIONS
Pool size:
-65,000 BTU = Pool ≤ 47 000 L
-90,000 BTU = Pool ≤ 66 000 L
-110,000 BTU = Pool ≤ 81 000 L
-140,000 BTU = Pool ≤ 104 000 L
BTU capacity:
-65,000 BTU
-90 000 BTU
-110 000 BTU
-140 000 BTU
Flow in gallons per minute:
-65 000 BTU: 28-37
-90 000 BTU: 33-41
-110 000 BTU: 35-44
-140 000 BTU: 35-67
Noise level (dB):
-65 000 BTU: 48
-90,000 BTU: 48
-110 000 BTU: 48
-140 000 BTU: 48
Circuit breaker(A):
-65 000 BTU: 30 A
-90 000 BTU: 30 A
-110 000 BTU: 40 A
-140 000 BTU: 50 A
Voltage:
- 220 V
Dimensions:
-65 000 BTU: 37.8'' x 25.9'' x 16.5''
-90 000 BTU: 43'' x 37.7'' x 16.5''
-110 000 BTU: 37.2'' x 38.5'' x 27.3''
-140 000 BTU: 32'' x 42'' x 37.7''
Net weight LBS:
-65 000 BTU: 134 LBS
-90 000 BTU: 229 LBS
-110 000 BTU: 251 LBS
-140 000 BTU: 317 LBS
WARRANTY
5 years on parts and 3 years on labor.
5 years on compressor and 10 years on heat exchanger
REPAIR SERVICES & INFORMATION FOR MAINTENANCE OR REPAIR
AVAILABLESPARE PARTS
NOT AVAILABLEAlthough Trévi cannot guarantee the availability of replacement parts, it will do its utmost to obtain them if necessary. Availability may vary from one manufacturer to another.
