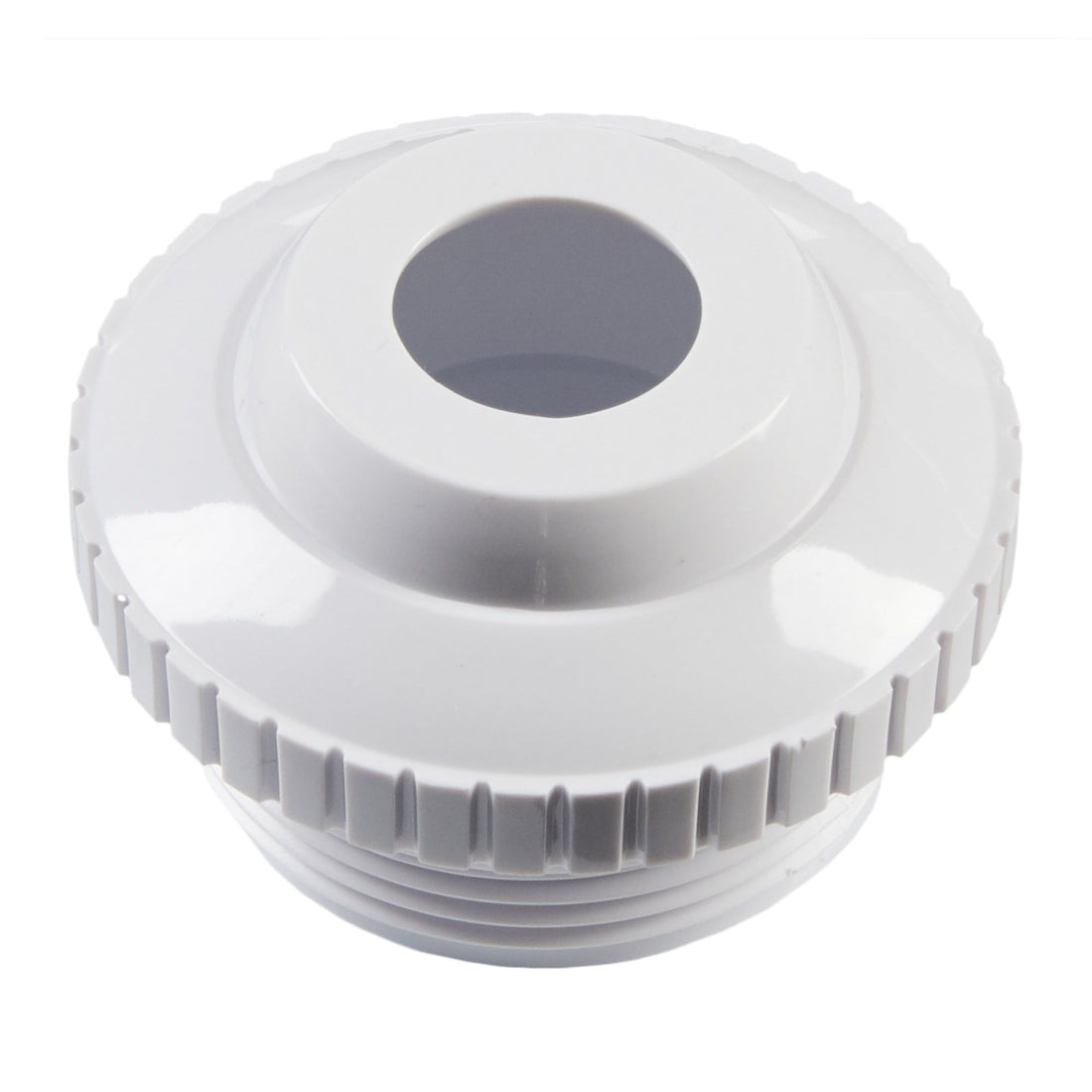

The Hayward Hydro Stream fitting is a universal directional fitting designed to optimize water circulation. While it's the perfect complement to Hayward fittings, its standard design allows it to fit most pool returns on the market.

Read more Read less
SKU: 5086

Availability

In-store pickup
Pickup available in at 00 Mirabel Pickup unavailable at 00 Mirabel
In-store availability
1650 In stock at 00 Mirabel 1650 In stock at 00 Mirabel Sold out at 00 Mirabel

The Hayward Hydro Stream fitting is a universal directional fitting designed to optimize water circulation. While it's the perfect complement to Hayward fittings, its standard design allows it to fit most pool returns on the market.

Features

  • 3-piece design: Includes threaded base, directional ball (eye) and clamping ring.

  • Format: 1 1/2 inch MIP (Male Iron Pipe) thread with a 3/4 inch jet opening.

  • Adjustment: The ball pivots easily to direct the water flow precisely where you need it.

  • Colour: Classic white.

Delivery is free for chemicals and small accessories with purchases of $50 or more. A $10 fee applies to orders under $50. We deliver quickly across Canada for this item.

Unscrew:Remove the ring (collar) and the old ball from the wall fitting.

Place:Insert the new ball into the ring and start screwing the assembly onto the water return, without blocking it.

Adjust :Orient the ball at the desired angle to direct the water jet.

To block :Screw the ring on tightlyby handto fix the angle.

As with the return of water,remove each removable part(ring and nozzle) before winter. Depending on your region, install awinterizing plugWaterproof to block water and protect plumbing from ice expansion.

REPAIR SERVICES AND INFORMATION FOR MAINTENANCE OR REPAIR

AVAILABLE

SPARE PARTS & REPAIR SERVICES



Includes the threaded base, the directional ball (eye) and the clamping ring.

Key Characteristics

Resistance

Chemical resistance.

Thread

Robust threading ensures a solid and stable technical connection

Direction

Easy adjustment of the water return direction

Compatibility

Compatible with above-ground and in-ground pools

FAQ



Coupez la pompe, tenez la partie extérieure et tournez la bague intérieure dans le sens antihoraire. Si le fitting est collé par le calcaire, utilisez un peu d’eau chaude ou notre outil bleu pour éviter d’abîmer le plastique.



Abaissez le niveau d’eau, dévissez l’écrou extérieur, retirez la façade intérieure et remplacez le joint et le fitting par un nouveau modèle. Revissez solidement et remplissez la piscine.



Position your eyeat ~45° downwards And oriented towards the opposite side of the skimmer in order to create a circular current that pushes the debris towards the skimmer.


  • Filtered clogged(backwash sand / cartridge rinsing).
  • Basket pump/skimmer blocked.
  • Valve partially closed or by pass poorly adjusted.



He reinject the filtered water in the pool and creates a traffic which pushes the debris towards the skimmer, homogenizes the temperature and the chemistry.

>
