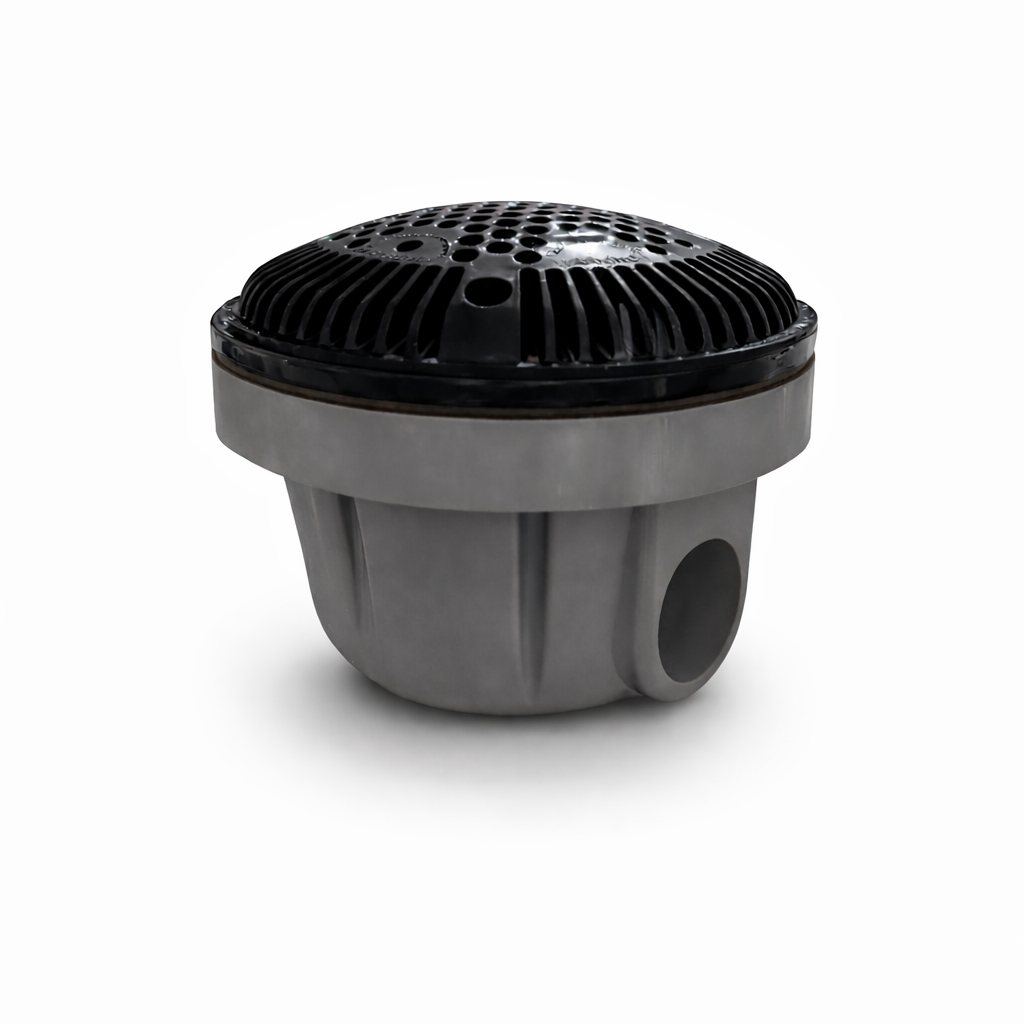

Complete black bottom drain for above-ground pool
Complete black bottom drain for above-ground pool

Complete black bottom drain for above-ground pool

Made in Quebec
$49.99
$49.99
0% off
$49.99

Ensure efficient and safe water circulation with the 140-0026 black bottom drain for above-ground pools. Designed to provide stable and powerful suction, it helps improve filtration by directing water to the pump system. Its robust construction allows it to withstand chemicals and the conditions of residential pool use.

Read more Read less
SKU: 40753

Availability

In-store pickup
Pickup available in at 00 Mirabel Pickup unavailable at 00 Mirabel
In-store availability
515 In stock at 00 Mirabel 515 In stock at 00 Mirabel Sold out at 00 Mirabel

Ensure efficient and safe water circulation with the 140-0026 black bottom drain for above-ground pools. Designed to provide stable and powerful suction, it helps improve filtration by directing water to the pump system. Its robust construction allows it to withstand chemicals and the conditions of residential pool use.

Features

  • Model: 140-0026

  • Bottom drain for above-ground pool

  • Color: Black

  • Durable construction resistant to chemicals

  • Design promoting efficient and safe suction
  • Connection: 1 1/2″ NPT
  • Box: 9″ x 9″

Shipping is free for this product on orders of $50 or more in Quebec and Ontario. A $10 shipping fee applies to orders under $50.

For New Brunswick, a $40 shipping fee applies regardless of the order amount.

For Nova Scotia, a $50 shipping fee applies regardless of the order amount.

Format compatible with installation on above-ground pools

Regularly inspect the cover to ensure it is securely attached and in good condition. Clean any accumulated debris around the drain during pond maintenance and check the seals before each season to guarantee optimal watertightness.

REPAIR SERVICES AND INFORMATION FOR MAINTENANCE OR REPAIR

AVAILABLE

SPARE PARTS & REPAIR SERVICES


  • HT Black Bottom Drain Cover
  • Grey bottom drain body
  • Fixing ring
  • 1 1/2″ NPT PVC plug (skimmer)
  • Screw kit
  • 2 large round sealing gaskets (CS-301)
  • HT bottom drain box (9″ x 9″)

Key Characteristics

Resistance

Chemical resistant

Compatibility

Compatible with above-ground pools

Robust

Robust, UV-resistant construction

Compatibility

Perfectly compatible with vinyl liner pools

FAQ



The installation of a main drain is done during the pool assembly process. The drain is placed perfectly centered on the bottom, the plumbing is connected with flexible PVC pipe or pipe leading to the skimmer, and then everything is covered with sand or pool liner material to protect the pool's edge. The liner is then installed on top. The drain must be watertight, securely fastened, and properly aligned to ensure good water circulation.



To clean a bottom drain, start by increasing the flow through it: close the skimmer and fully open the drain valve so the pump can draw water from the bottom. You can also use a jet of water to dislodge any fine dirt or deposits that have accumulated in the line. Regular maintenance of the filter and pump also helps prevent debris from building up and clogging the drain.


To clear a bottom drain, start by closing the skimmer and opening the drain valve to force the pump to draw water through it. If the blockage persists, use a high-pressure water jet to push the obstruction through. In some cases, a technician may need to use a drain snake to completely clear the line. Very low flow or air bubbles often indicate a partially blocked line.


To close the bottom drain, simply close the dedicated valve located near the pump.


To drain an above-ground pool using the main drain, close the skimmer valve and fully open the main drain valve. The pump will then begin drawing water directly from the bottom of the pool. You can lower the water level to the minimum the pump can draw. For complete drainage, a submersible pump will be necessary, as the main drain cannot empty the water completely.


Crack or break of drain body or of the piping(often after the freeze winter).

Renovation (change of covering/canvas): we take this opportunity toto change the bottom drain.


Very rarely. A replacement is not being considered.that if:

  • THE The ground has shifted.(sagging, misalignment that distorts the assembly),
  • THE The drain body or piping is cracked/broken.(often following the winter frost),
  • theregrille/lidis damaged (to be replaced immediately for thesecurity).


Yes, as soon as it is obstructed.A blocked bottom drain reduces suction, overloads the pump, and degrades circulation.
